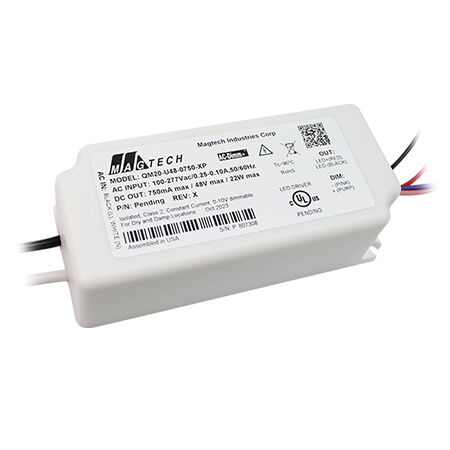

QM20

MODEL NO

• QM20-U48-YYYY-XP
• QM20-U24-XP
• QM20-U12-XP

YYYY: Output current

XP: 94V-0 plastic case

PRODUCT FEATURES:

• Compact size maximizes design flexibility.
• Low flickering – Less than 10% up to 120Hz
• No-load power consumption less than 0.5W
• Turn on time – Less than 500mS
• 4 in 1 dimming – TRIAC / ELV / 0-10V / PWM
• Dimming percentage less than 1% – All dimming methods
• Both CC and CV output are compatible to 4 in 1 dimming
• Output programming tool with full range adjustable; 50mA increments
• Wireless using ZigBee or BlueTooth SIG Protocol – Optional
• Transient Protection
• UL8750 Class 2 Class P and CE compliant – Pending
