Slim Constant Voltage LED Driver LD100H

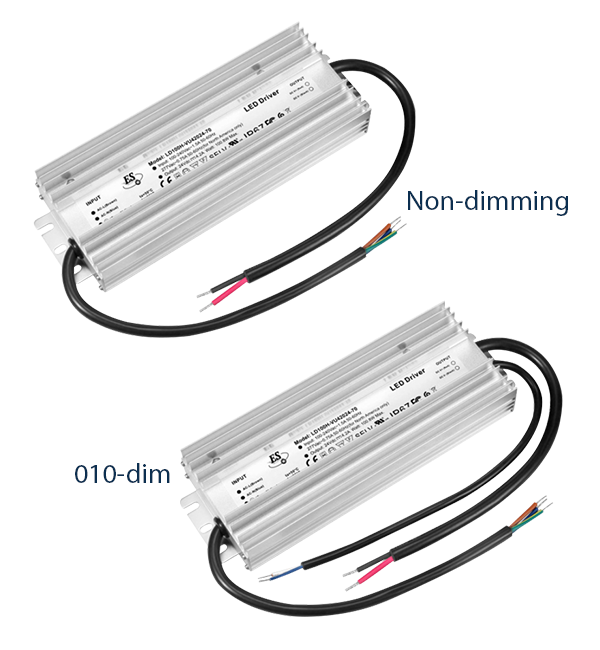

LD100H-70
100W AC-DC Constant Voltage LED Driver
- Universal AC input range 90~305VAC
- Constant Voltage Operation
- Built-in Active PFC Function
- Protections: OVP / OCP/ SCP/ OTP
- High-Efficiency typ. 93%
- Fully insulated case with IP67 level
- Convection cool (Aluminum Housing)
- No Load Consumption <0.5 at 230Vac
- Suitable for LED Strips; and Moving Sign and other Applications
- Function options: 3 in 1 dimming (dim-to-off); DALI (optional)
- The output and dimming lines a re-compliant with the new regulations with isolation.
- Slim dimention: 230 x 80.3 x 33.5mm; 840g

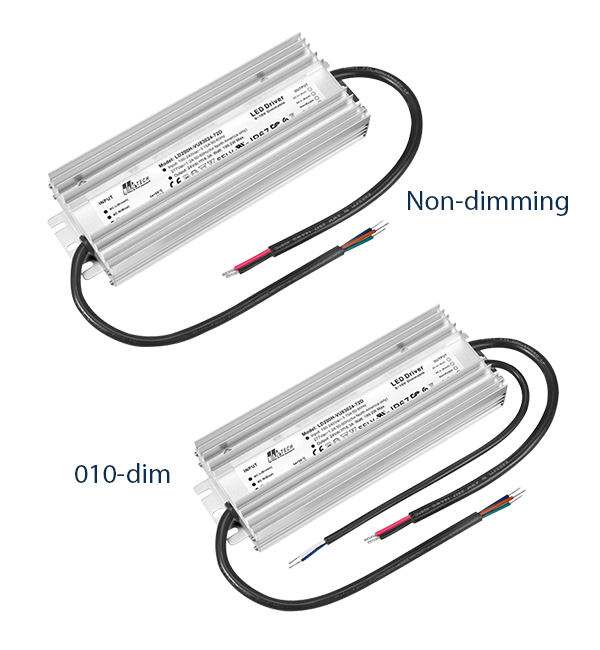

LD200H-70
200W AC-DC Constant Voltage LED Driver
- Universal AC input range 20~305VAC
- Constant Voltage Operation
- Built-in Active PFC Function
- Protections: OVP / OCP/ SCP/ OTP
- High-Efficiency tpy. 94%
- Fully insulated Case with IP67 level
- Convection cool (Aluminum Housing)
- No Load Consumption <0.5 at 230Vac
- Suitable for LED Strips; and Moving Sign and other Applications
- Function options: 3 in 1 dimming (dim-to-off); DALI (optional)
- The output and dimming lines a re-compliant
with the new regulations with isolation. - Slim dimention: 230 x 80.3 x 33.5mm; 840g
